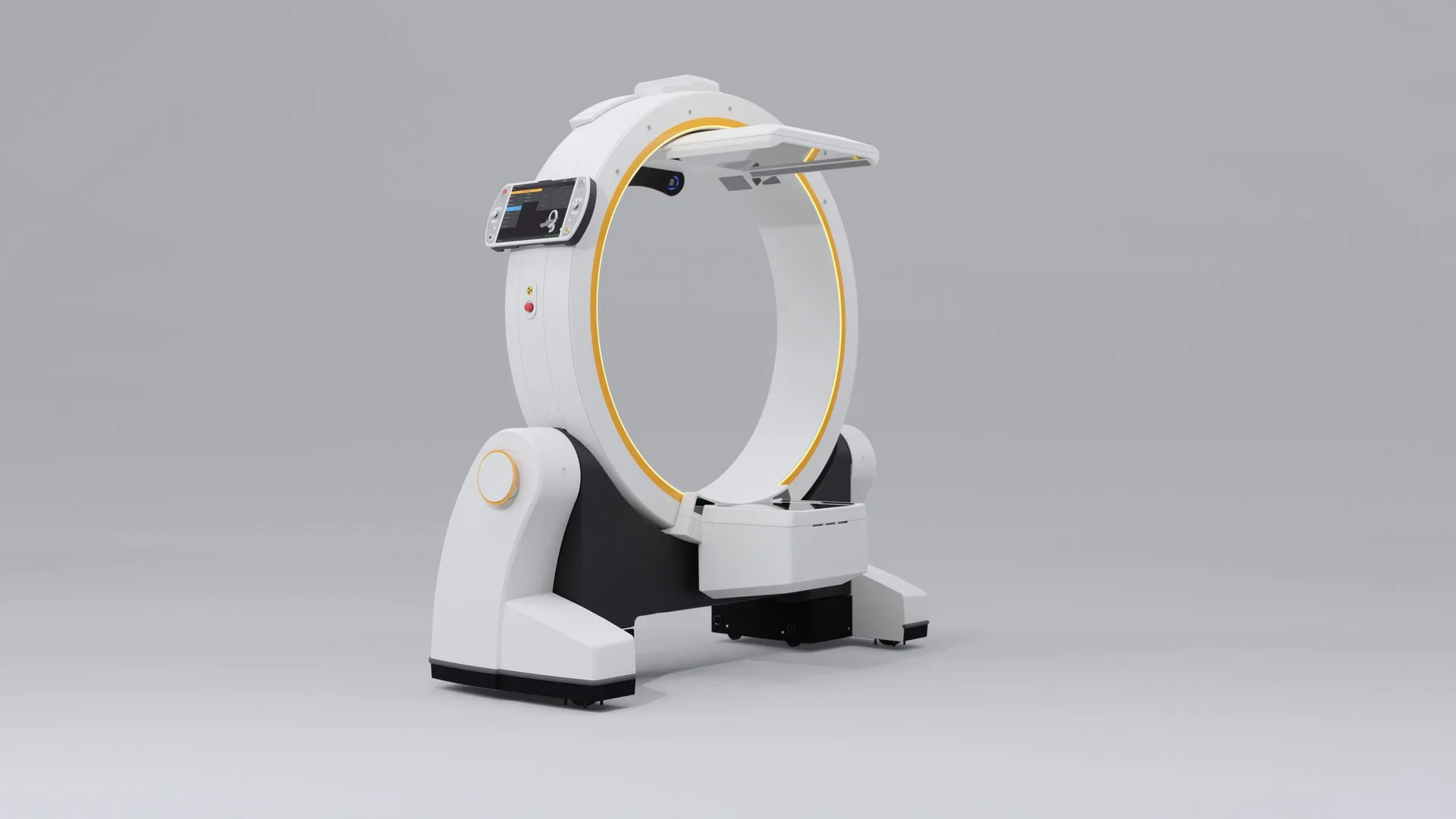

Loop-X Mobile Imaging Robot

Transforming surgery with mobile intraoperative imaging

Manufacturer: Brainlab. Supplied in Egypt by NJM Medical.

With a footprint of only 1.5 sqm and no need for a dedicated monitor cart, Loop-X saves O.R. space. With its large 43 cm x 43 cm flat-panel detector, Loop-X provides you with the desired information…

The mobile imaging robot Loop-X offers optimal 2D and 3D intraoperative image quality across various clinical disciplines ranging from spinal surgery to orthopedic, ENT, CMF and functional neurosurgery. By automating workflows, Loop-X is advancing mobile imaging and robotics with functionality that sets it apart from conventional imaging devices.

Small footprint, large image, greater flexibility

With a footprint of only 1.5 sqm and no need for a dedicated monitor cart, Loop-X saves O.R. space. With its large 43 cm x 43 cm flat-panel detector, Loop-X provides you with the desired information in one shot. Loop-X is compatible with a broad range of O.R. tables, integrating with your existing equipment to maximize resources.

Patient-tailored imaging with effective dose saving

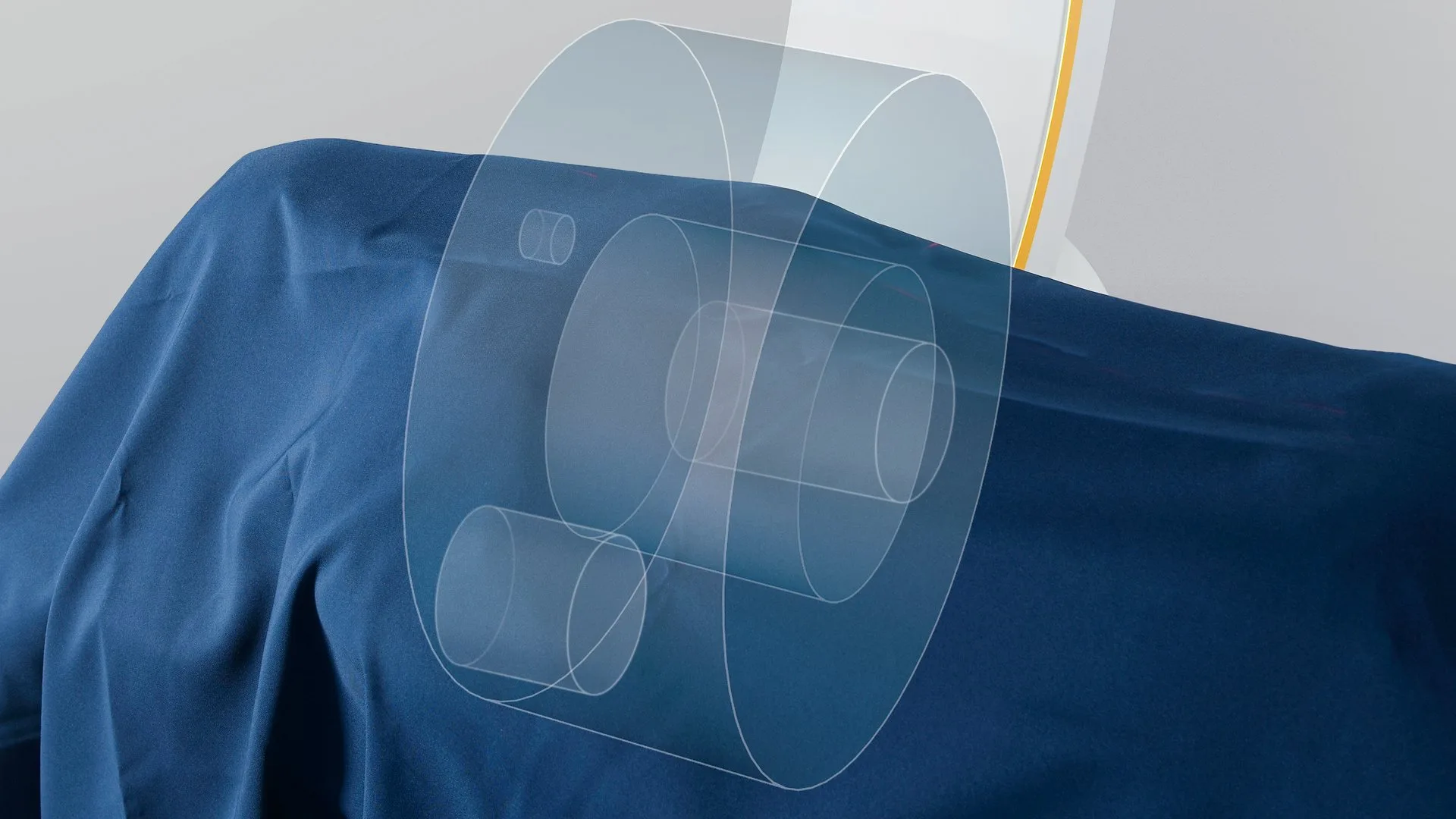

Acquire non-isocentric scan volume of 25 cm length in just one spin. For larger anatomical areas, extend the diameter to 48 cm—especially relevant in orthopedic applications and functional localizer scans. For smaller anatomical regions such as cochlea and CMF, collimate the field of view to as small as 3 × 3 cm. Loop-X Dynamic Collimation technology allows for protection of anatomical regions, contributing effectively to dose reduction.

Robotics meets imaging

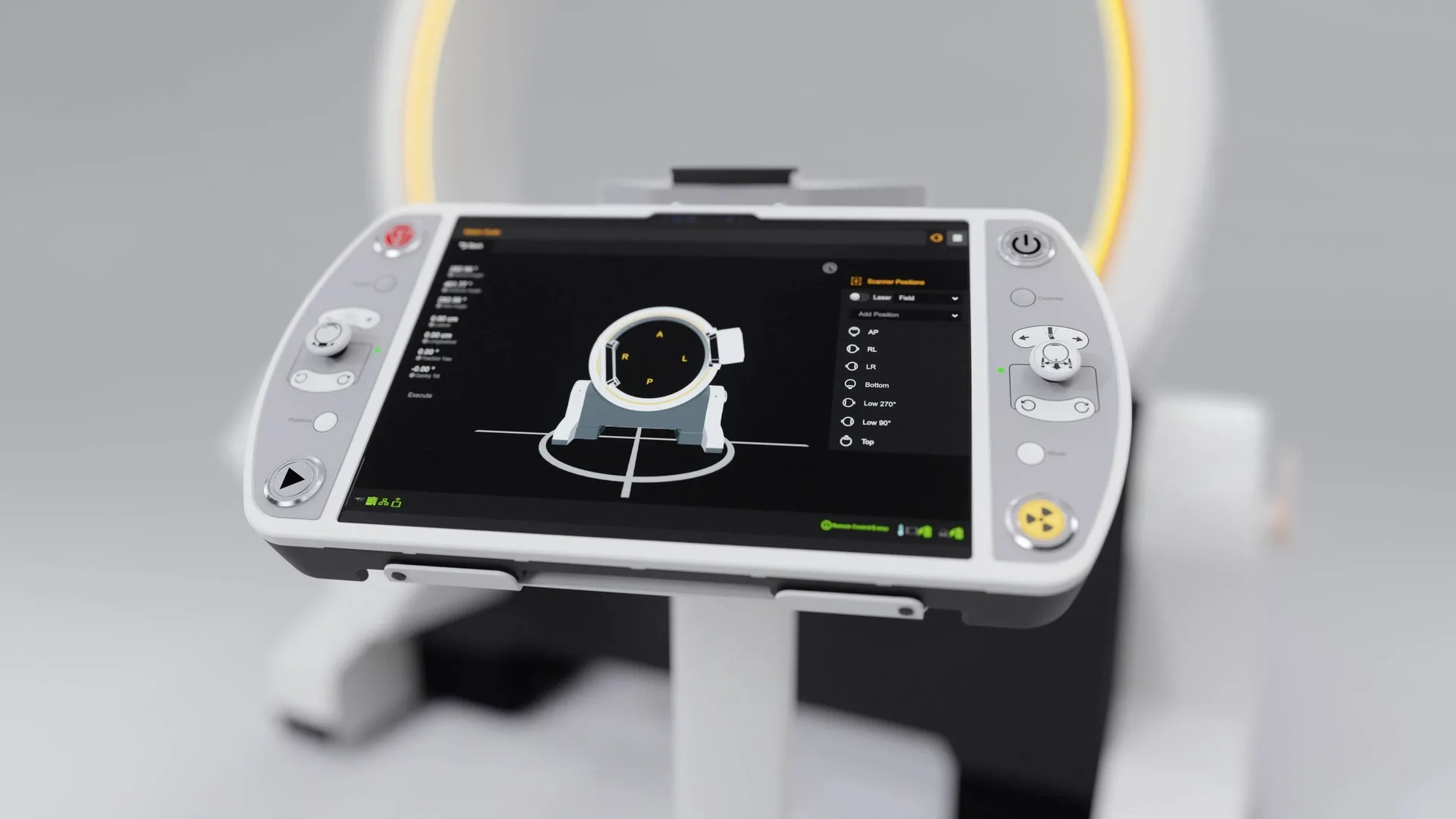

Loop-X utilizes a completely wireless Remote Control Panel (RCP) with intuitive joysticks, high resolution touchscreen and hard coded buttons to simplify maneuverability and conserve resources. With unlimited pre-saved positions, you can reacquire images with one command.

Loop-X is a superior option compared to conventional CT for imaging obese patients in the OR, a population that is continually growing. Additionally, it significantly reduces radiation exposure. In my opinion, its greatest feature is the seamless integration with navigation.

Thomas Kretschmer, MD, PhD, Dept. of Neurosurgery & Neurorestoration, Neurosurgical Intensive Care, Klinikum Klagenfurt, Austria

Request information

Contact NJM Medical for a demonstration, quotation or clinical support.
